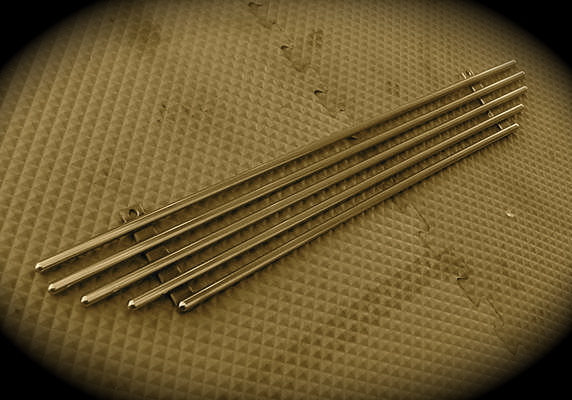

Grille Install Instructions Page


14mm hand wrench
10mm 1/4” drive socket
6-8” 1/4” drive extension
1/4” drive ratchet

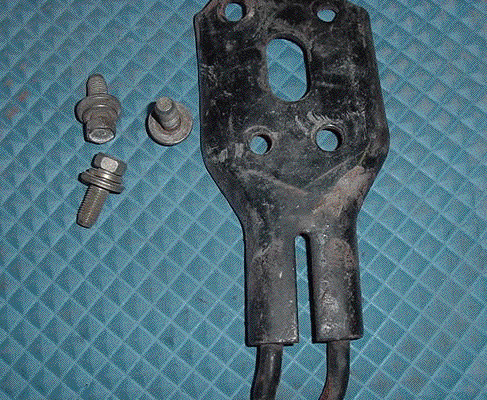

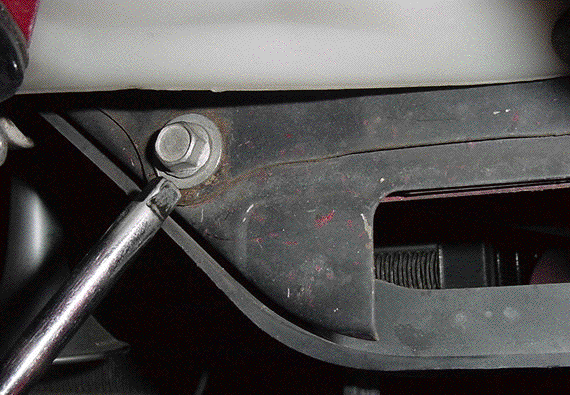

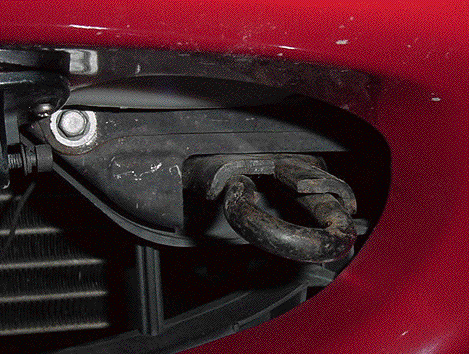

1st Step – Removal of the Tie Down Brackets (teeth)  The most difficult part of the task.  Each is held in place by three 14mm hex head bolts, the two inner are fairly easy to get the third outer is a little more to deal with but patience and they come right out.

ill. aill. b

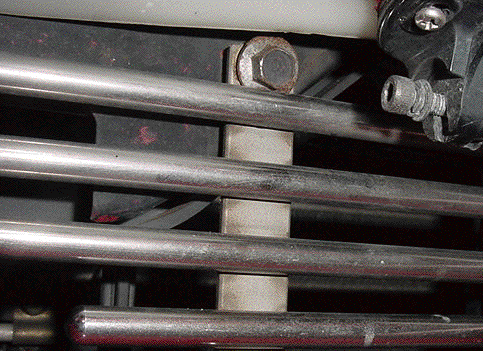

2nd Step – Locate and remove the two 10mm hex head bumper bracket bolts.  They will be inserted into the grille mount holes and re-fitted to the Miata.  Hand start each before tightening and your done.

Can't get it? We are always here to help - Email us at
